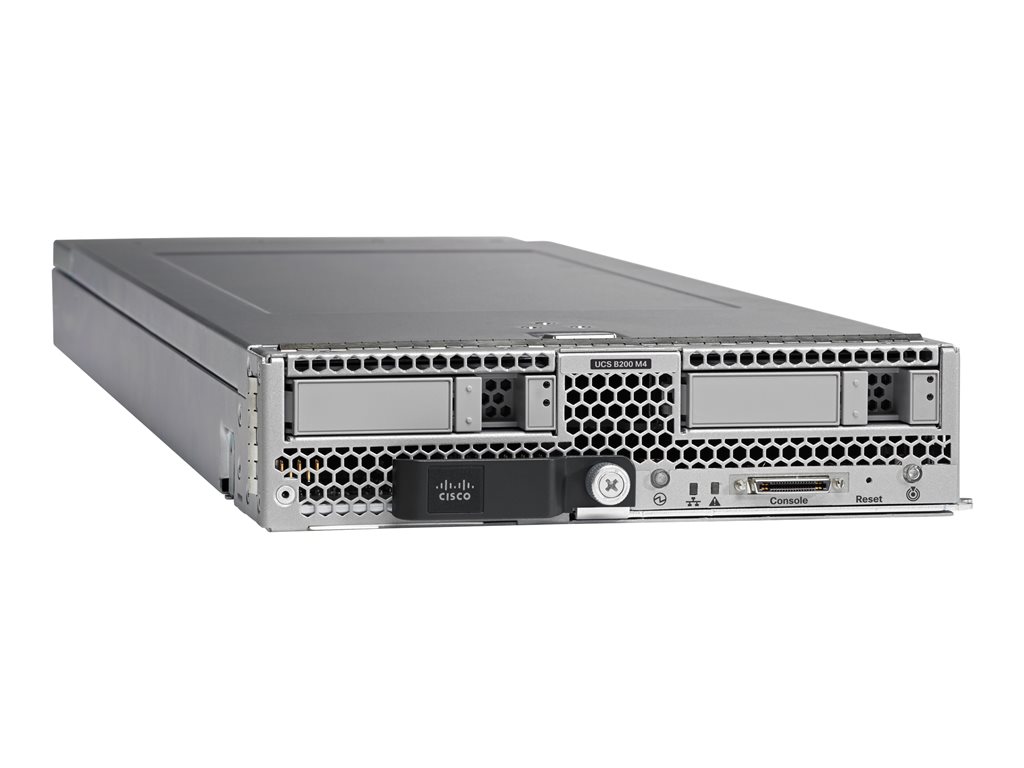

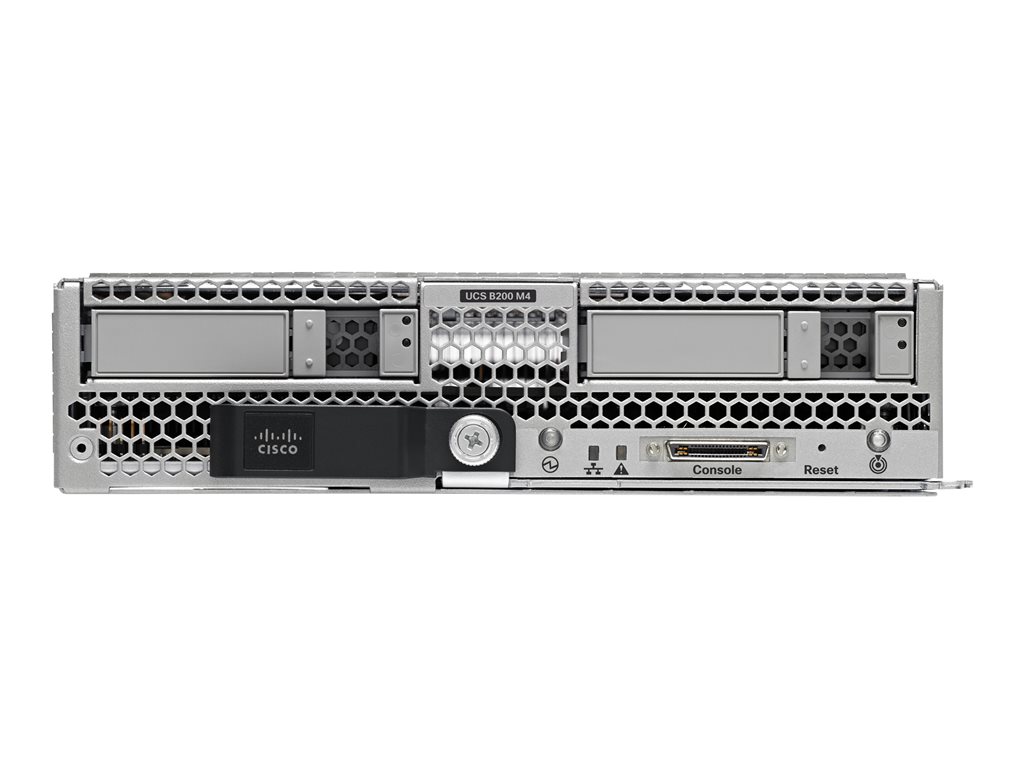

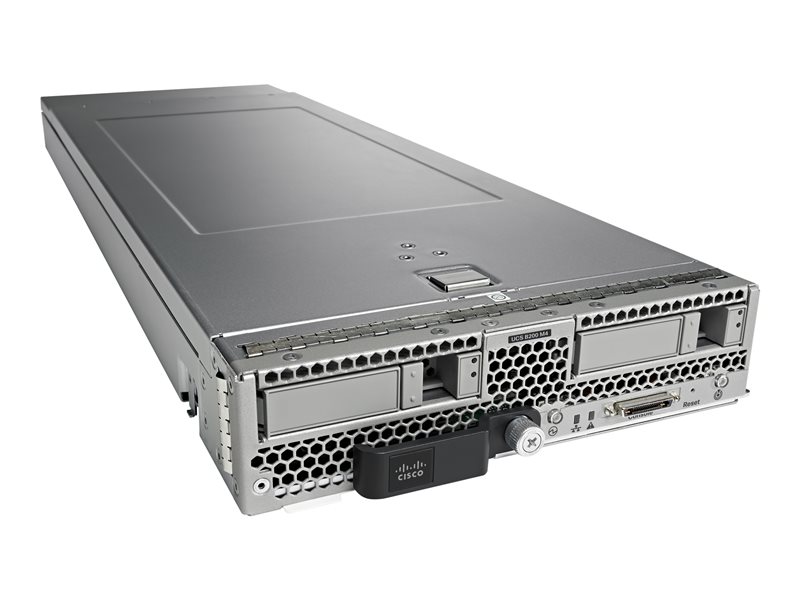

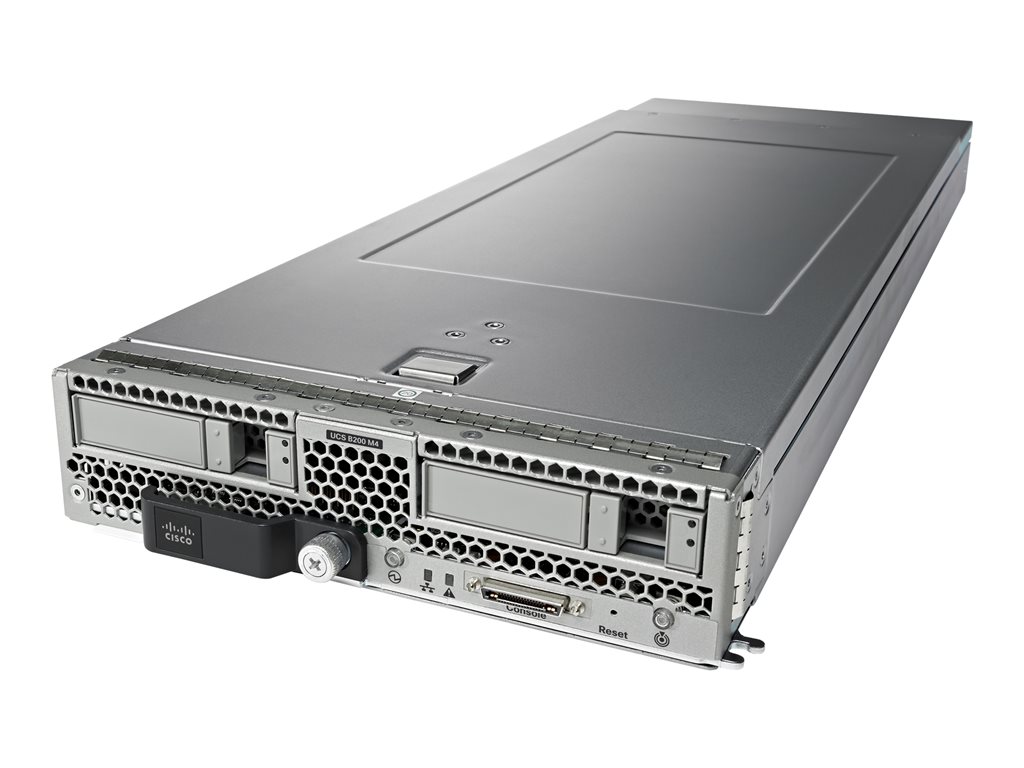

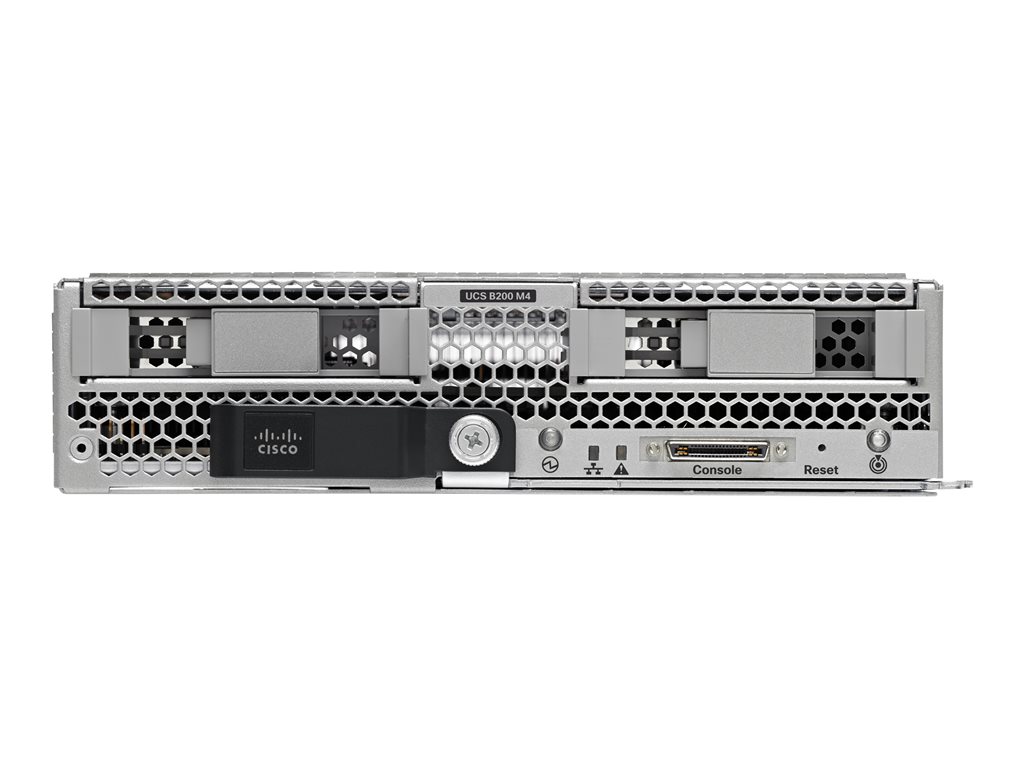

Cisco - Cisco UCS SmartPlay Select B200 M4 Advanced 1 (Tracer)
Server - blade - 2-way - 2 x Xeon E5-2690V3 / 2.6 GHz - RAM 256 GB - SAS - hot-swap 2.5" bay(s) - no HDD - G200e - 10 GigE, 10Gb FCoE - no OS - monitor: none
Cisco
TR-SP-B200M4-BA1
N/A
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Cisco UCS SmartPlay Select B200 M4 Advanced 1 (Tracer) - blade - Xeon E5-2690V3 2.6 GHz - 256 GB - no HDD |
| Type | Server - blade |
| Server Scalability | 2-way |
| Processor | 2 x Intel Xeon E5-2690V3 / 2.6 GHz (, up to 3.5 GHz, (12-core) |
| Processor Socket | LGA2011-v3 Socket |
| Processor Main Features | Hyper-Threading Technology, Intel Turbo Boost Technology 2 |
| Cache Memory | 60 MB |
| Cache Per Processor | 30 MB |
| RAM | 256 GB (installed) / 768 GB (max) - DDR4 SDRAM - ECC - PC4-17000 |
| Storage Controller | RAID (SATA 6Gb/s / SAS 12Gb/s) (LSISAS3108) |
| Server Storage Bays | Hot-swap 2.5" |
| Hard Drive | No HDD |
| Optical Storage | No optical drive |
| Graphics Controller | Matrox G200e |
| Video Memory | 8 MB |
| Networking | 10 GigE, 10Gb FCoE |
| OS Provided | No operating system |
| Software Included | Cisco ONE Foundation |
| Dimensions (WxDxH) | 8 in x 24.4 in x 2 in |
| Manufacturer Warranty | Limited warranty - replacement - 3 years - response time: next business day |
| General | |
| Type | Server |
| Product Form Factor | Blade |
| Server Scalability | 2-way |
| Hot-Swap Bays Qty | 2 |
| Expansion / Connectivity | |
| Bays | 2 (total) / 2 (free) x hot-swap 2.5" SFF |
| Slots | 2 (total) / 0 (free) x CPU ¦ 24 (total) / 16 (free) x DIMM 288-pin ¦ 2 (total) / 1 (free) x expansion slot ¦ 2 (total) / 2 (free) x SDHC Card (internal) |
| Interfaces | 1 x KVM ¦ 1 x USB 2.0 (1 internal) ¦ 1 x VGA |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replacement - 3 years - response time: next business day |
| Miscellaneous | |
| Included Accessories | 2 x CPU Heatsink, 2 x drive blanking panels |
| Compliant Standards | CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, AS/NZS 60950-1, ICES-003 Class A, UL 60950-1 Second Edition, GB 4943, Directive 2004/108/EC, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, Directive 2006/95/EC, VCCI Class A, KN24, KN22 Class A, EN 300386 |
| RAM | |
| Installed Size | 256 GB / 768 GB (max) |
| Technology | DDR4 SDRAM - ECC |
| Effective Memory Speed | 2133 MHz |
| Rated Memory Speed | 2133 MHz |
| Memory Specification Compliance | PC4-17000 |
| Form Factor | DIMM 288-pin |
| Slots | 24 (total) / 16 (empty) |
| Features | Quad rank, Load-Reduced DIMM (LRDIMM) |
| Configuration Features | 8 x 32 GB |
| RAM Supported | PC4-17000 - 768 GB registered - ECC ¦ PC4-17000 - 1.5 TB Load-Reduced - ECC |
| Networking | |
| Ethernet Ports | 4 x 10 Gigabit Ethernet |
| Ethernet Controller | Cisco UCS Virtual Interface Card 1340 |
| Data Link Protocol | 10 Gigabit Ethernet, 10Gb Fibre Channel over Ethernet (FCoE) |
| Remote Management Controller | Cisco Integrated Management Controller |
| Compliant Standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ae, IEEE 802.1Qbb, IEEE 802.1Qaz |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 5 - 93% (non-condensing) |
| Storage Controller | |
| Type | RAID |
| Controller Interface Type | SATA 6Gb/s / SAS 12Gb/s |
| Storage Controller Name | LSISAS3108 |
| RAID Level | RAID 0, RAID 1 |
| Cache Memory | |
| Installed Size | 60 MB |
| Cache Per Processor | 30 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | Matrox G200e |
| Video Memory | 8 MB |
| Video Interfaces | VGA |
| Operating System / Software | |
| OS Provided | No operating system |
| Software | Cisco ONE Foundation |
| Hard Drive | |
| Type | No HDD |
| Dimensions & Weight | |
| Width | 8 in |
| Depth | 24.4 in |
| Height | 2 in |
| Processor / Chipset | |
| CPU | Intel Xeon E5-2690V3 |
| Clock Speed | 2.6 GHz |
| Max Turbo Speed | 3.5 GHz |
| Number of Cores | 12-core |
| CPU Qty | 2 |
| Max CPU Qty | 2 |
| CPU Upgradability | Upgradable |
| Processor Main Features | Hyper-Threading Technology, Intel Turbo Boost Technology 2 |
| CPU Socket | LGA2011-v3 Socket |
| Chipset Type | Intel C612 |
