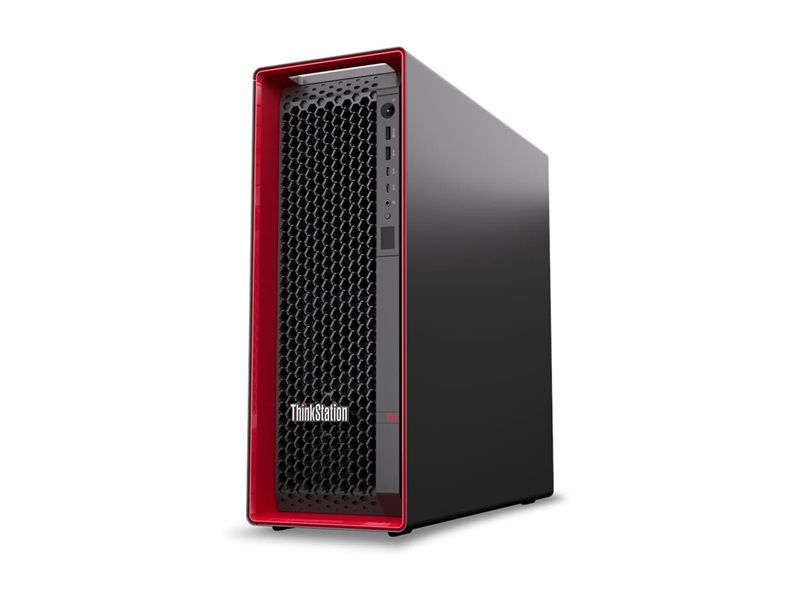

Lenovo - Lenovo ThinkStation P5 Gen 2 30KB
AI Workstation - tower 1 x Xeon 638 / up to 4.8 GHz - vPro Enterprise - RAM 32 GB - SSD 2 TB - TCG Opal Encryption, NVMe, Performance - RTX PRO 4500 Blackwell - Gigabit Ethernet, 2.5 Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6), Bluetooth 5.4, IEEE 802.11be (Wi-Fi 7) - Win 11 Pro for Workstations - monitor: none - keyboard: English - Lenovo TopSeller - with 3 Years Lenovo Premier Support
Product Description
What's Included
| Main Specifications | |
|---|---|
| Product Description | Lenovo ThinkStation P5 Gen 2 - tower - AI Workstation - Xeon 638 3.2 GHz - vPro Enterprise - 32 GB - SSD 2 TB - English |
| Type | Workstation - tower - AI Workstation |
| Bundled Services | 3 Years Lenovo Premier Support |
| Platform Technology | Intel vPro Enterprise |
| Localization | Language: English / region: United States |
| Processor | 1 x Intel Xeon 638 / 3.2 GHz (up to 4.8 GHz, (18-core) |
| Processor Socket | FCLGA4710 Socket |
| Cache Memory | 72 MB |
| Cache Per Processor | 72 MB |
| RAM | 32 GB (installed) / 1 TB (max) - DDR5 SDRAM - ECC |
| Storage Controller | NVMe; SATA |
| Hard Drive | SSD 2 TB - PCI Express 5.0 x4 - M.2 2280 - TCG Opal Encryption, NVM Express (NVMe), Performance |
| Optical Storage | No optical drive |
| Card Reader | Yes |
| Graphics Controller | NVIDIA RTX PRO 4500 Blackwell |
| Video Memory | 32 GB GDDR7 SDRAM |
| Networking | 1GbE, 802.11a, 802.11b/g/n, Wi-Fi 5, 2.5GbE, Wi-Fi 6, Bluetooth, Wi-Fi 7 |
| Keyboard | English |
| Power | (50/60 Hz) |
| OS Provided | Windows 11 Pro for Workstations |
| Software Included | Lenovo AI Now |
| Dimensions (WxDxH) | 6.5 in x 17.9 in x 1.7 in |
| Weight | 41.89 lbs |
| Manufacturer Selling Program | Lenovo TopSeller |
| Environmental Standards | EPEAT Gold |
| Manufacturer Warranty | Base warranty - 3 years - on-site ¦ Extended warranty - 3 years - on-site - response time: next business day |
| General | |
| Platform Technology | Intel vPro Enterprise |
| Type | Workstation |
| AI Level | AI Workstation |
| Bundled Services | 3 Years Lenovo Premier Support |
| Product Form Factor | Tower |
| Built-in Devices | Front diagnostic panel with QR code |
| Embedded Security | Discrete Trusted Platform Module (TPM 2.0) Security Chip |
| Localization | Language: English / region: United States |
| Expansion / Connectivity | |
| Interfaces | 1 x headphones/microphone (1 front) ¦ 4 x USB 3.2 Gen 2 (2 front, 2 rear) ¦ 2 x USB-C 3.2 Gen 2 (2 front) ¦ 1 x USB-C 3.2 Gen 2 (1 rear) (data only) ¦ 1 x USB-C 3.2 Gen 2x2 (1 rear) (data only) ¦ 2 x USB 2.0 (2 rear) ¦ 1 x LAN (2.5Gigabit Ethernet) (1 rear) ¦ 1 x audio line-in (1 rear) ¦ 1 x audio line-out (1 rear) |
| Manufacturer Warranty | |
| Service & Support | Base warranty - 3 years - on-site ¦ Extended warranty - 3 years - on-site - response time: next business day |
| Miscellaneous | |
| Included Accessories | Lock kit (common key) |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately), chassis intrusion switch |
| Security Slot Type | Kensington security slot |
| Compliant Standards | FIPS 140-2, TCG Certified |
| Manufacturer Selling Program | Lenovo TopSeller |
| RAM | |
| Installed Size | 32 GB (installed) / 1 TB (max) |
| Technology | DDR5 SDRAM - ECC |
| Effective Memory Speed | 6400 MT/s |
| Rated Memory Speed | 6400 MT/s |
| Form Factor | DIMM 288-pin |
| Slots | 8 (total) / 6 (empty) |
| Features | Registered, quad channel memory architecture |
| Configuration Features | 2 x 16 GB |
| Networking | |
| Ethernet Controller | Intel I226-LM |
| Wireless LAN Supported | Yes |
| Wireless NIC | Intel WI-FI 7 BE200 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 2.5 Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6), Bluetooth 5.4, IEEE 802.11be (Wi-Fi 7) |
| Features | Dual stream (2x2), Intel Active Management Technology (AMT) 16 |
| Power | |
| Device Type | Power supply |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Provided | 1000 watt |
| 80 PLUS Certification | 80 PLUS Platinum |
| Storage Controller | |
| Type | NVMe |
| Cache Memory | |
| Installed Size | 72 MB |
| Cache Per Processor | 72 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | NVIDIA RTX PRO 4500 Blackwell |
| Video Memory | 32 GB GDDR7 SDRAM |
| Audio Output | |
| Compliant Standards | High Definition Audio |
| Operating System / Software | |
| OS Provided | Windows 11 Pro for Workstations English |
| Software | Lenovo AI Now |
| Storage Controller (2nd) | |
| Type | SATA |
| RAID Level | RAID 0, RAID 1, RAID 5 |
| Hard Drive | |
| Type | SSD - M.2 2280 |
| Capacity | 1 x 2 TB |
| Interface Type | PCI Express 5.0 x4 |
| Features | TCG Opal Encryption, NVM Express (NVMe), Performance |
| Input Device | |
| Type | Mouse, keyboard |
| Dimensions & Weight | |
| Width | 6.5 in |
| Depth | 17.9 in |
| Height | 1.7 in |
| Weight | 41.89 lbs |
| Keyboard | |
| Keyboard Name | Lenovo Traditional Keyboard |
| Interface | USB |
| Localization & Layout | English |
| Card Reader | |
| Type | Card reader |
| Supported Flash Memory Cards | SD Memory Card |
| Mouse | |
| Mouse Name | Lenovo Calliope Mouse |
| Interface | USB |
| Processor / Chipset | |
| CPU | Intel Xeon 638 |
| Clock Speed | 3.2 GHz |
| Max Turbo Speed | 4.8 GHz |
| Number of Cores | 18-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| CPU Socket | FCLGA4710 Socket |
| Chipset Type | Intel W890 |
| Sustainability Information | |
| EPEAT Compliant | EPEAT Gold |
