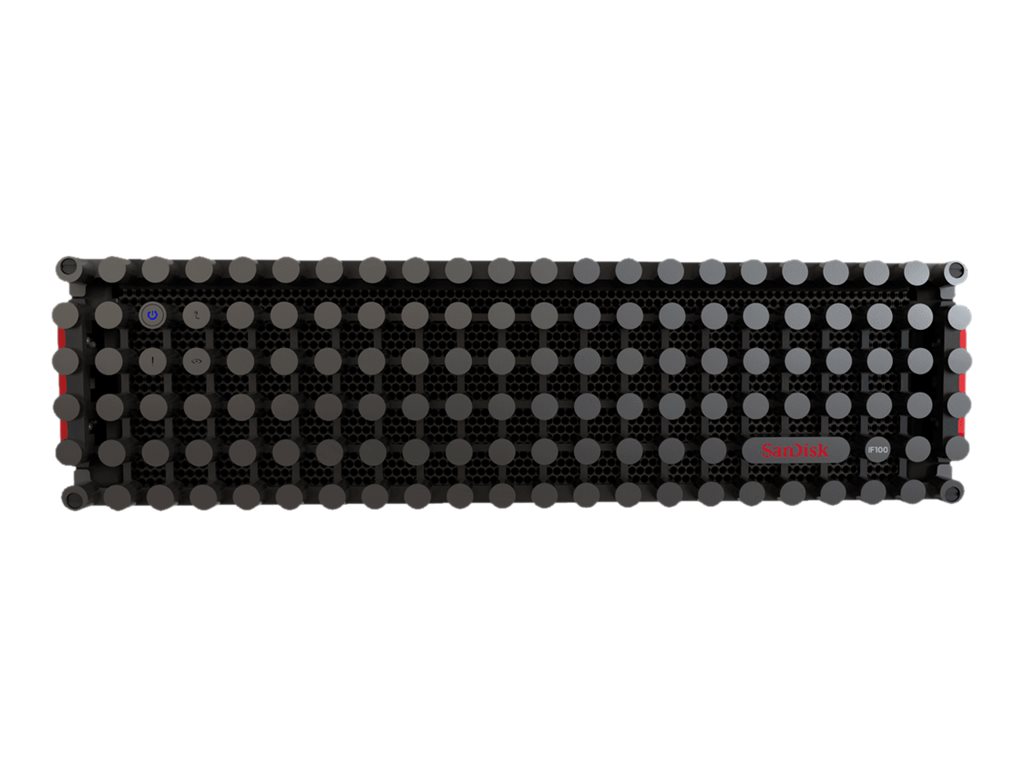

SanDisk - SanDisk InfiniFlash IF100 Mini
Flash storage array - 64 TB - 64 bays 8 TB x 8 - SAS 6Gb/s (external) - rack-mountable - 3U
SanDisk
SDIF100-2Y8M0000
N/A
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | SanDisk InfiniFlash IF100 Mini - flash storage array |
| Device Type | Flash storage array |
| Enclosure Type | Rack-mountable - 3U |
| Image Color Disclaimer | The displayed product image may be a different color |
| Total Array Capacity | 64 TB |
| Max Supported Capacity | 512 TB |
| Interface | SAS 6Gb/s |
| Host Channels | 8 |
| Installed Devices / Modules Qty | 8 (installed) / 64 (max) |
| Hard Drive | 8 x 8 TB - hot-swap |
| Power | AC 120/230 V - 50/60 Hz |
| Power Redundancy | Yes |
| Dimensions (WxDxH) | 17.5 in x 31.5 in x 5.2 in |
| Weight | 99.21 lbs |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Flash storage array |
| Enclosure Type | Rack-mountable - 3U |
| Image Color Disclaimer | The displayed product image may be a different color |
| Expansion / Connectivity | |
| Expansion Bays | 64 (total) / 56 (free) x hot-swap |
| Interfaces | 8 x SAS 6Gb/s - 26 pin 4x Shielded Mini MultiLane SAS (SFF-8088) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Features | Hot-swappable fans |
| Software Included | Command Line Interface (CLI) |
| Compliant Standards | RoHS, WEEE, REACH |
| Storage | |
| Total Array Capacity | 64 TB |
| Max Supported Capacity | 512 TB |
| HDD Array External Interface | SAS 6Gb/s |
| Host Channels | 8 |
| Power | |
| Power Device | Internal power supply - hot-plug |
| Power Redundancy | Yes |
| Voltage Required | AC 120/230 V - 50/60 Hz |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Hard Drive | |
| Type | Hot-swap |
| Capacity | 8 x 8 TB |
| Dimensions & Weight | |
| Width | 17.5 in |
| Depth | 31.5 in |
| Height | 5.2 in |
| Weight | 99.21 lbs |
| Chassis | |
| Installed Devices / Modules Qty | 8 |
| Supported Devices / Modules Qty | 64 |
