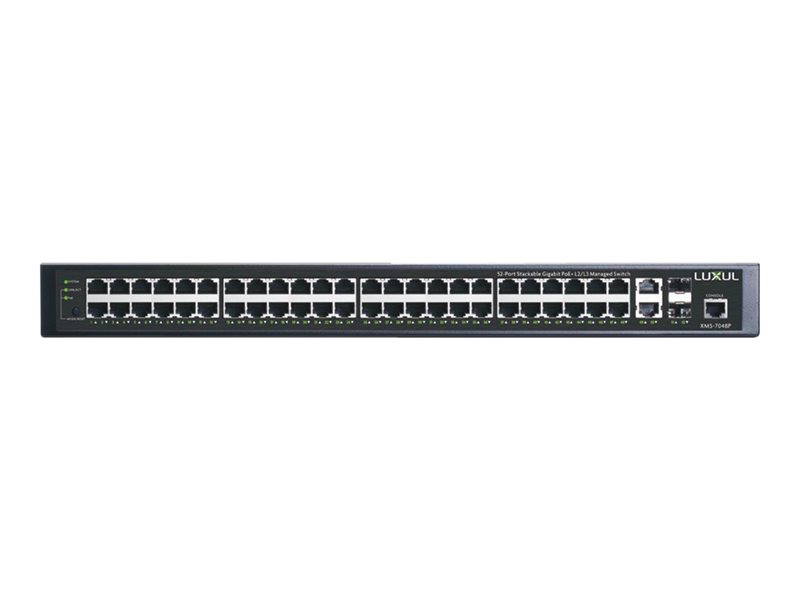

Luxul - Luxul XMS-7048P
Switch - L3 - managed - 48 x 10/100/1000 (PoE+) + 2 x 10/100/1000 + 2 x 10 Gigabit SFP+ - rack-mountable - PoE+ (740 W)
Luxul
XMS-7048P
0729440674991
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Luxul XMS-7048P - switch - 52 ports - managed - rack-mountable |
| Device Type | Switch - 52 ports - L3 - managed - stackable |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000 (PoE+) + 2 x 10/100/1000 + 2 x 10 Gigabit SFP+ |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 740 W |
| Performance | Switching capacity: 140 Gbps ¦ Uplink bandwidth: 24 Gbps |
| Capacity | Virtual interfaces (VLANs): 4096 |
| Features | Trunking, VLAN support, manageable, half duplex mode, full duplex mode, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Quality of Service (QoS), Storm Control, failover protection |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.1w, IEEE 802.1x, IEEE 802.3at |
| Power | AC 120/230 V (50/60 Hz) |
| Dimensions (WxDxH) | 17.4 in x 14.8 in x 1.8 in |
| System Requirements | Apple MacOS, Linux, Microsoft Windows |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Switch - 52 ports - L3 - managed - stackable |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000 (PoE+) + 2 x 10/100/1000 + 2 x 10 Gigabit SFP+ |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 740 W |
| Performance | Switching capacity: 140 Gbps ¦ Uplink bandwidth: 24 Gbps |
| Capacity | Virtual interfaces (VLANs): 4096 |
| Max Units In A Stack | 16 |
| Features | Trunking, VLAN support, manageable, half duplex mode, full duplex mode, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Quality of Service (QoS), Storm Control, failover protection |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.1w, IEEE 802.1x, IEEE 802.3at |
| Status Indicators | Power, system, link/activity |
| Expansion / Connectivity | |
| Interfaces | 48 x 1000Base-T RJ-45 PoE+ ¦ 2 x 1000Base-T RJ-45 ¦ 2 x 10Gbit LAN SFP+ |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Rack Mounting Kit | Included |
| Compliant Standards | Plug and Play, FCC, RoHS |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Software / System Requirements | |
| OS Required | Apple MacOS, Linux, Microsoft Windows |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 17.4 in |
| Depth | 14.8 in |
| Height | 1.8 in |
