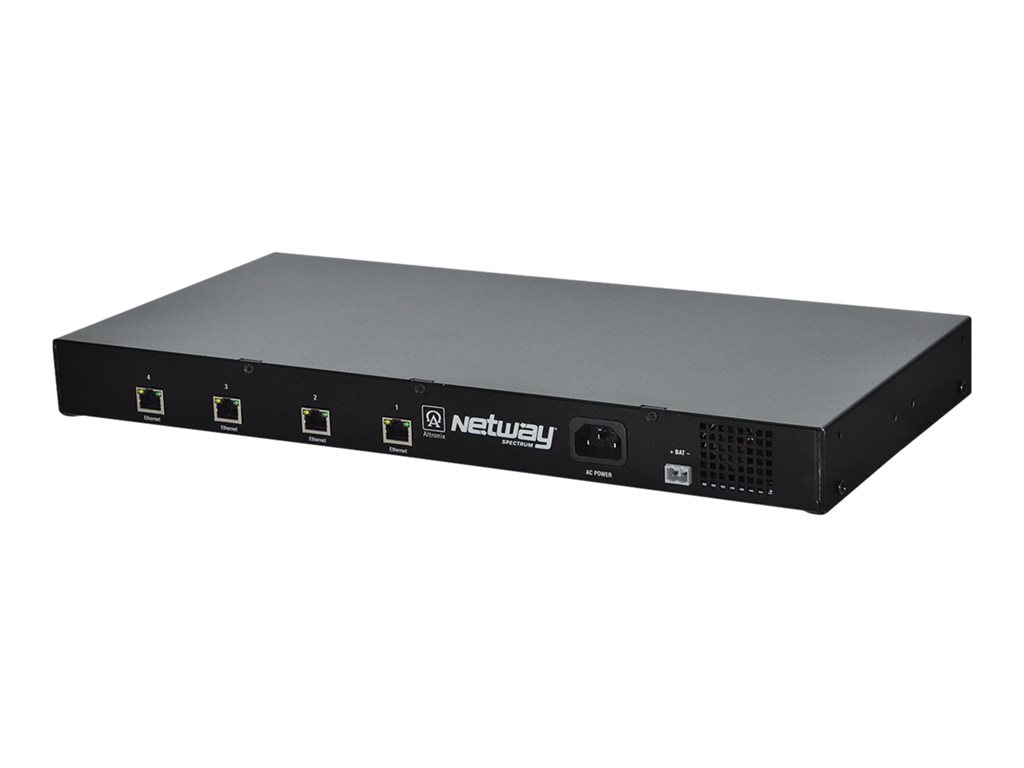

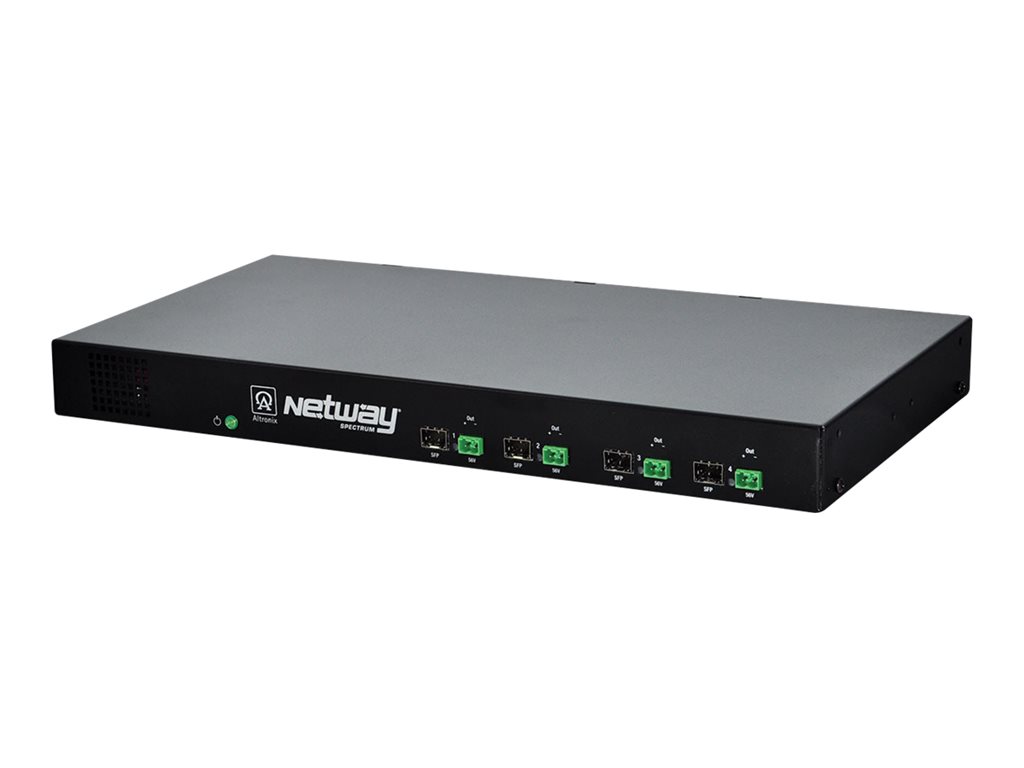

Altronix - Altronix NetWaySP4P
Fiber media converter - GigE - 10Base-T, 100Base-TX, 1000Base-T, 1000Base-X - 4 ports - SFP (mini-GBIC) / RJ-45 - 1U
Altronix
NETWAYSP4P
0782239955237
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Altronix NetWaySP4P - fiber media converter - 10Mb LAN, 100Mb LAN, GigE |
| Device Type | Fiber media converter - SFP (mini-GBIC) / RJ-45 |
| Ports Qty | 4 |
| Form Factor | Rack-mountable - 1U |
| Cabling Type | 10Base-T, 100Base-TX, 1000Base-T, 1000Base-X |
| Data Transfer Rate | 1 Gbps |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, GigE |
| Power Over Ethernet (PoE) | PoE+ |
| Power | AC 120/230 V |
| Dimensions (WxDxH) | 19.1 in x 8.5 in x 1.6 in |
| Weight | 3.79 lbs |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Fiber media converter |
| Form Factor | Rack-mountable - 1U |
| Expansion / Connectivity | |
| Interfaces | 4 x Ethernet 1000Base-T - RJ-45 ¦ 4 x Ethernet 1000Base-X - SFP |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | UL, cUL, UL 60950-1 |
| Networking | |
| Ports Qty | 4 |
| Connectivity Technology | Wired |
| Cabling Type | 10Base-T, 100Base-TX, 1000Base-T, 1000Base-X |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, GigE |
| Data Transfer Rate | 1 Gbps |
| Features | Surge protection |
| Compliant Standards | IEEE 802.3af, IEEE 802.3at |
| Power | |
| Power Over Ethernet (PoE) | PoE+ |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 85% |
| Dimensions & Weight | |
| Width | 19.1 in |
| Depth | 8.5 in |
| Height | 1.6 in |
| Weight | 3.79 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 6 lbs |
