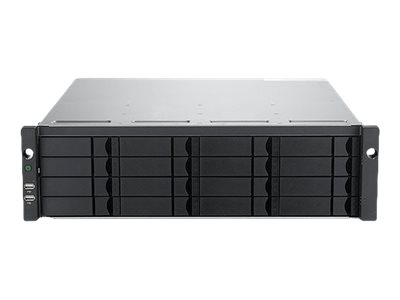

Promise - Promise Vess A6600
NVR - 16 x 8 TB - networked - 3U - rack-mountable - System Builder Program
Promise
F40VA6600000145
N/A
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Promise Vess A6600 - standalone NVR |
| Device Type | NVR - networked - rack-mountable - 3U |
| Compression Format | H.264 |
| Hard Drive | 16 x 8 TB |
| Hard Drive(s) Supported | Quantity: 16 |
| Voltage | 100 - 240 V |
| Dimensions (WxDxH) | 19.8 in x 17.6 in x 5.2 in |
| Weight | 59.17 lbs |
| Country Kits | United States, EMEA |
| Pricing Type | System Builder Program |
| Manufacturer Warranty | 3 years |
| General | |
| Device Type | NVR - rack-mountable - 3U |
| Compression Format | H.264 |
| Package Content | Slide rails, NVR |
| OS Provided | Windows 10 Enterprise |
| Software Included (Y) | Milestone XProtect Professional+ 2019 R1 |
| Country Kits | United States, EMEA |
| Compliant Standards | VCCI, BSMI, CB, FCC, cTUVus, KC, RCM, EMI Class A |
| Pricing Type | System Builder Program |
| Warranty | 3 years |
| Networking | |
| Network Interfaces | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Supported Protocols | SNMP |
| Features | Manageable, e-mail notification, SNMP support |
| Power | |
| Voltage | 100 - 240 V |
| Frequency | 50/60 Hz |
| Power Consumption | 550 Watt |
| Redundant Power Supply | Included |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 104 °F |
| Hard Drive | |
| Quantity Installed | 16 |
| Quantity Supported | 16 |
| Capacity | 8 TB |
| Interface | Serial ATA |
| Removable | Yes |
| Connections | |
| Video Output Ports | HDMI x 1, VGA x 1, DVI x 1 |
| Audio Input Ports | Mini-phone 3.5 mm x 4 |
| Audio Output Ports | Mini-phone 3.5 mm x 1 |
| Network Port | 10/100/1000Base-T x 2 |
| Other Ports | USB 2.0 x 2, USB 3.0 x 4, TOSLINK x 1 |
| Dimensions & Weight | |
| Width | 19.8 in |
| Depth | 17.6 in |
| Height | 5.2 in |
| Weight | 59.17 lbs |
| Security DVR | |
| Networked | Yes |
| Features | RAID 5 support, RAID 10 support, RAID 0 support, RAID 1 support, JBOD support, RAID 6 support, e-mail alarm notifications, RAID 1E support, RAID 30 support, RAID 50 support, RAID 60 support, RAID 3 support, SmartBoost, 128GB SSD OS system drive, PCIe 3.0 x8 slot |
| Video Server | |
| CPU | Intel Xeon E3-1275V5 |
| RAM | 16 GB |
