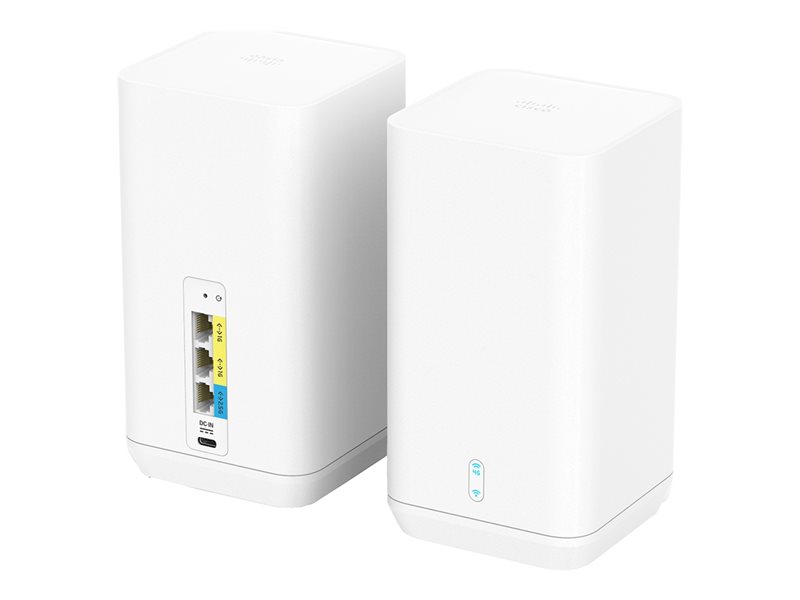

Cisco - Cisco Catalyst CG113-4GW6
Gateway - WWAN - 2-port switch - 10 GigE, 2.5 GigE - Wi-Fi 6 - 4G
Cisco
CG113-4GW6B
N/A
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Cisco Catalyst CG113-4GW6 - gateway - WWAN - 802.11a/b/g/n/ac/ax - 4G - desktop |
| Device Type | Gateway - wireless cellular modem - 2-port switch (integrated) |
| Enclosure Type | Desktop |
| Generation | 4G |
| Cellular Band | LTE B13, LTE B2, LTE B4, LTE B12, LTE B3, LTE B7, LTE B20, LTE B1, LTE B25, LTE B26, LTE B5, LTE B28, LTE B8, LTE B66, LTE B40, LTE B41, LTE B38, LTE B14, LTE B32, LTE B42, LTE B43, LTE B48, LTE B71 |
| Data Link Protocol | 10 Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Remote Management Protocol | SSH, CLI, RADIUS |
| Features | DHCP support, NAT support, IPv4 support, fanless, Network Timing Protocol (NTP), 2x2 MIMO technology, SD-WAN support, DNS support, ACL support, standby mode |
| Power | AC 100-240 V (50 - 60 Hz) 3 A |
| Dimensions (WxDxH) | 3 in x 3 in x 7.1 in |
| Weight | 3.09 lbs |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Gateway - 2-port switch (integrated) |
| Enclosure Type | Desktop |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | 10 Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Remote Management Protocol | SSH, CLI, RADIUS |
| Encryption Algorithm | IKE, 128-bit AES, 256-bit AES, 256-bit AES-CBC, 128-bit AES-CBC |
| Authentication Method | Secure Shell (SSH), RADIUS |
| Features | DHCP support, NAT support, IPv4 support, fanless, Network Timing Protocol (NTP), 2x2 MIMO technology, SD-WAN support, DNS support, ACL support, standby mode |
| Compliant Standards | WEEE, EMI Class B |
| RAM | 2 GB DDR4 SDRAM |
| Flash Memory | 1 GB |
| Status Indicators | Status, Wi-Fi, cellular |
| Expansion / Connectivity | |
| Interfaces | WAN / LAN: 1 x 2.5G Gigabit Ethernet - RJ-45 ¦ 2 x 1Gb Ethernet - RJ-45 |
| Expansion Slots | 2 (total) / 2 (free) x Nano-SIM |
| Manufacturer Warranty | |
| Service & Support | Limited hardware warranty - advanced replacement - 1 year - response time: 10 days |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 100-240 V (50 - 60 Hz) |
| Electric Current Required | 3 A |
| Software / System Requirements | |
| OS Provided | Cisco IOS CG Release 17.9.1a and later |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Communications | |
| Type | Wireless cellular modem |
| Generation | 4G |
| Cellular Band | LTE B13, LTE B2, LTE B4, LTE B12, LTE B3, LTE B7, LTE B20, LTE B1, LTE B25, LTE B26, LTE B5, LTE B28, LTE B8, LTE B66, LTE B40, LTE B41, LTE B38, LTE B14, LTE B32, LTE B42, LTE B43, LTE B48, LTE B71 |
| Dimensions & Weight | |
| Width | 3 in |
| Depth | 3 in |
| Height | 7.1 in |
| Weight | 3.09 lbs |
| Antenna | |
| Antenna | Internal |
| Antenna Qty | 4 |
